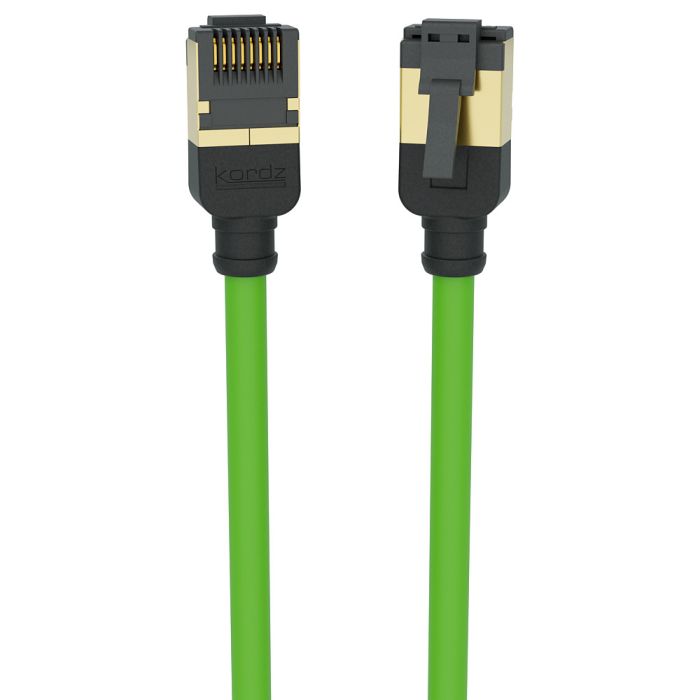

K33946-0025-GN 0.25 meter Slim Profile CAT6A U/FTP Network Patch Cord | Green

Registered trade customers only can see price

SKU# :

K33946-0025-GN

SKU

K33946-0025-GN

PRS Series Slim Profile CAT6A U/FTP Network Patch Cord

Kordz PRS Series CAT6A U/FTP Network Patch Cords are engineered with stranded 28AWG copper to be flexible, slim and ideal for fast Gigabit Ethernet in high performance AV installations. Their custom compact RJ45 connector (Patent Pending) with a robust, 2000 cycle latching tab, is designed to be the most resilient connector in the world.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Our PRS series CAT6A Network Patch Cord is a 10Gbps, slim-profile, 28AWG copper patch cord designed for high-bandwidth AV installations. Available in lengths from 0.15m to 30m the PRS patch cord features our custom designed compact RJ45 connector providing an almost unbreakable latching tab.

Exceeds ANSI/TIA-568.2-D Category 6A standards for all frequencies from 1 to 500Mhz

28AWG stranded U/FTP Category 6A shielded slim-profile network patch cord

Each cable is individually performance tested with its own unique downloadable test report

Anti-corrosion gold-plated shielded connector

Suitable for 10BASE-T, 100BASE-TX, 1000BASE-T/1000BASE-TX (Gigabit) & 10GBASE-T, PoE, PoE+ & PoE++

UL 444 (CMG) fire-rating

568B wire connection configuration

Overall diameter of 4.8mmØ

World's smallest minimal operational depth and most flexible CAT6A U/FTP patch cord

Available in 7 Colours – Black, Blue, Grey, Green, Yellow, Red & White

Patent pending design

Specifications

TECHNICAL SPECIFICATIONS

CONSTRUCTION

Conductors: Solid 28 AWG Oxygen-Free Stranded Copper
Conductor Insulation: Skinned Foam PE
Shielding: Individual pairs AL-Mylar shielded 100% Coverage
Cable Jacket Material: UL CMG-rated PVC Composite
Connector Material: Nylon Composite
Contact Material: Solid Oxygen-free Copper, 50μ” Gold-plated
Contact Type: 3-prong for solid/stranded conductors
Strain Relief: Injection-moulded PVC

ELECTRICAL CHARATERISTICS

Conductor Resistance: 223Ω/km
Insulation Resistance: 10MΩ min @100V DC

Category 6A U/FTP Shielded Network Patch Cord Specification Standard

Application Standards:
ANSI/TIA-568.2-D
IEC11801
EN50173
Performance Standard:
≤ 10.0m - Category 6A Component Tested
≥ 15.0m - Category 6A Channel Tested
Wiring method: T568-B
Certified Data Rate: 10 Gbps (Gigabit ethernet)
Supported Data Rate: ≥ 10 Gbps (Gigabit ethernet)
Certified Bandwidth: 1 to 500 MHz
Supported Bandwidth: ≥ 500 MHz

MECHANICAL

Cable Diameter: 28 AWG, 4.8mm/0.19”Ø
Maximum Cable Pulling Tension: 80 kgf/cm²
Cable to Plug Tensile Strength: TBC
Cable Bend Radius: 20.0mm | 0.79in
Recommended Total Mounting Depth: 40.0mm | 1.57in
Mating Cycles (max.): 1000 cycles
Temperature range: UL Temp rating - 75ºC
