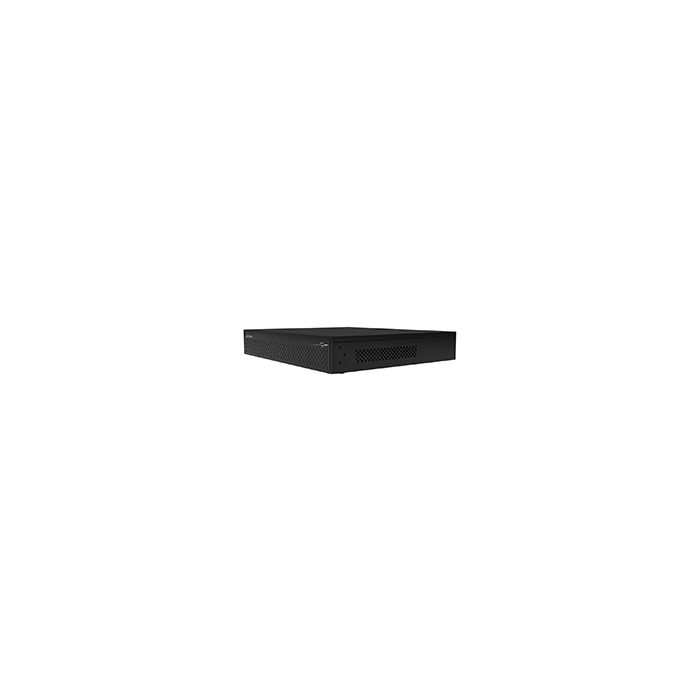

ClareVision NVR 16CH

ClareVision NVR

The ClareVision NVR features power over Ethernet (POE) capabilities and support multiple cameras. The NVR can store recordings up to 4K (3840 x 2160) on the included hard drive, as well as includes support for the H.265+ video encoding codec for improved storage efficiency.

The NVR includes driver support for ClareOne and Control4 platforms, allowing end-users to view live streams from their desired control panel or smart home app.

Dome camera with tablet displaying camera view

Unified Clare Ecosystem

ClareVision cameras and NVRs can be used as part of the ClareOne ecosystem. Live video streams can be viewed on both the ClareOne Wireless Security and Smart Home Panel, as well as the ClareHome App.

Smart home displaying app with camera views

ClareVision App

ClareVision cameras and NVRs can be used in standalone configurations with the use of the ClareVision App. The app allows users to view live video feeds, review recordings, and manage their cameras on both iOS and Android devices.

Improved Storage Efficiency

ClareVision cameras feature the H.265+ video encoding codec which allows for significantly improved storage efficiency over traditional encoding codecs.

On Board POE Support

The ClareVision 4-Channel NVR includes 4 physical POE ports, and supports up to 9 cameras. The 8-Channel NVR includes 8 physical POE ports, and supports up to 16 cameras. The ClareVision 16-Channel NVR includes 16 physical POE ports, and supports up to 25 cameras.

Supported Brands

ClareVision NVRs include support for ONVIF conformant devices, and feature support for Control4, Luma, and Legacy ClareVision.

Certifications

ClareVision NVRs are fully compliant with ETL/ETL-C, IC, CE, FCC, ROHS, and ONVIF S/T regulatory requirements.

NDAA Compliant

As the need for NDAA compliance increases in the market, you can rest easy knowing that ClareVision has you covered. All ClareVison Cameras and NVRs are manufactured with chipsets that are in full compliance with the NDAA (National Defense Authorization Act) Defense Law.

	CLR-V200-16PNVR4
Color	Black
HDMI 4K Support	Yes
Channels	16 (supports up to 25 cameras)
POE Ports	16
Supported Resolutions	4K, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1
Video Compression	H.265+, H.265, H264+, H.264
HDMI Compliance	Yes - 4K
Display Split Window	16
Motion Detection	25 Channel, MD Zones: 396 (22 x 18)
OSD & Control Interface Desc.	Camera tilt, time, recording, motion detection, event alarm
Audio Inputs / Outputs	2 RCA ports
Alarm Contact Inputs/Outputs	16/4
USB Ports	2
External USB Backup Device	Yes
Hard Drive Storage (Internal)	4 TB included Hard Drive Max: 32 TB
ESATA Connection	Yes
Network / Ethernet Desc.	10M/100M/1000M Adaptive Ethernet Interface
Bandwidth	120 MB (incoming)
Setup & Functions Desc.	Complete camera setup through NVR
Browser Support	Chrome, Edge, IE, Safari (Live View & Config Only)
Rack Mountable	Yes
Rack Spacing	2U
Included Accessories	Remote, power cord, mouse, SATA cables
Driver	Control4, Clare Controls
Power	125W
Operating Temperature	14° to 131° F (-10° to 55° C)
Dimensions (W x H x D)	19.05" x 2.71" x 14.44" (484 x 69 x 367mm)
Weight	17.6 lb
Certifications	ETL/ETL-C, IC, CE, FCC, ROHS, ONVIF S/T

SKU	CLR-V200-16PNVR4
Warranty	2 Years
NVR Channels	16
