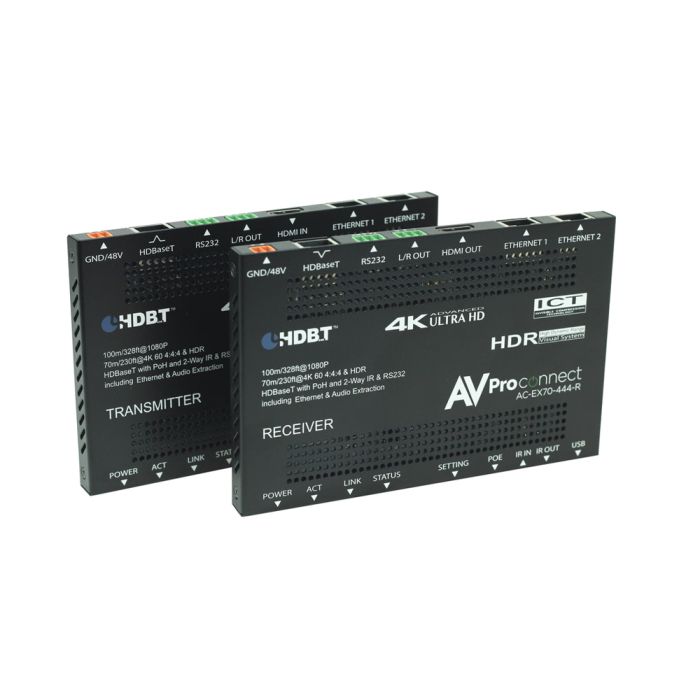

AC-EX70-444-KIT HDR HDBaseT Extender

Registered trade customers only can see price
SKU# :
AC-EX70-444-KIT
SKU
AC-EX70-444-KIT

70m Slim Extender with I-Pass, Bi Directional Power, RS232 - ICT for full HDR/HDMI Pass through (Full HDR, 4K60 4:4:4)

Ultra Slim 70m (100m HD) 4K60 4:4:4, HDR  HDBaseT Extender
  • HDMI 2.0(a/b)
  • 2 Ethernet ports (on Tx & Rx) for extending a LAN network
  • 18Gbps Bandwidth Support (Using ICT)
  • Ultra Slim (.47 inch/12mm)
  • Up to 4K60 4:4:4 Support
  • Full HDR Support (HDR 10 & 12 Bit)
  • HDR, HDR10+ and HLG Support
  • Dolby Vision Support
  • 4K  --> 1080P Down-scaling for mixed systems
  • EDID Management and EDID emulate
  • 4K & HD Test Patterns built into Tx and Rx for troubleshooting
  • L/R Audio Extraction on Tx and Rx
  • HDCP 2.2 (and all earlier versions supported)
  • CEC Pass Through
  • 3D Support
  • 100M (328ft) on 1080P (Cat6a)
  • Up to 70m (230ft) on 4K (up to 4K60 4:4:4, HDR) (Cat6a)
  • Optional Long Range Mode for 150M (500ft) on up to 1080P 8-BIT
The AC-EX70-444 is a revolutionary 4K60 4:4:4, HDR and 18Gbps supported HDBaseT extender over single CAT-5e/6a/7 UTP/STP.

AVProConnect presents its first 18Gbps over copper extender.  Using ICT (Invisible Compression Technology) we have achieved what was thought to be impossible.  We can deliver a virtually lossless high bandwidth 4K HDR signal with support for all signals up to 18Gbps.  Deep Color and HDR Metadata remain intact making the transmission free of artifacts like banding.  Other similar devices will deliver a sub-par image that has very visible banding and color shifting.



Key benefits of using AC-EX70-444:



Key benefits of using AC-EX70-444:

Invisible Compression Technology: ICT is a revolution in HDMI extension technology.  This proprietary technology can compress high bandwidth HDMI signals into a more manageable size to fit through a CAT Cable "pipe".  The ICT algorithm can manage all flavors of HDR including 4:4:4, 4:2:2, and 4:2:0 as well as signals up to 18Gbps and 4K 60Hz 4:4:4.  The architecture of ICT allows it to be compatible with all chroma subsampling types, color spaces and HDMI Deep Color up to 12  Bit.  Our technology is unique because it is truly invisible.  It is not only invisible to the human eye, it is invisible to HDMI test gear and other sink devices, what comes in is what goes out.  What makes ICT special is that we preserve HDR Metadata and color information and depth in its full, original, integrity.  Other compression technologies sacrifice these to save space and it will cause very visible banding, color shifting and motion artifacts in the image.

This technology is backed by extensive testing in side by side comparisons of ICT vs direct connected sources.  The setup is two identical displays and a single source.  The source is split and sent to both displays, one using ICT and one with an 18Gbps cable.  The movie is shown in HDR and evaluators are brought into determine which one is compressed.  The results are conclusive, it is invisible.  Even to the most trained eye.

Extend 4K 60 4:4:4 and HDR Signals: The length of manufactured HDMI cable is unchangeable after it is made and they are unreliable after about 25FT. Additionally, HDMI connectors can only be terminated in specialized factory environment due to its extremely high frequencies and high density. This does not allow installers or users to remake or make cables on a DIY basis. CAT-5E/6A cables are available widely and can be reworked easily by the installer or end-user.  Additionally, using CAT cable allows the user to change components as technology changes.  By using AC-EX70-444, the transmission distance for HD 1080P is up to 1000 meters (330’) and UHD, 4K resolution the distance reaches an impressive 70 meters (230’).

Down Scaling: The AC-EX70-444 has a scaling circuit built into the transmitter.  The scaler can scale 4K (and HDR) --> 1080P.  A common application for this is when you have a 4K distribution and you have one or two displays that are older. You can use the extender to scale down where you need to and not have to reduce the entire system.  The AC-EX70-444 does the heavy lifting, eliminating the need to add additional boxes.   This is an ideal choice for extension for projects requiring an 18G matrix like the AC-MX1616-AUHD.

Total EDID Management: The AC-EX70-444 has robust EDID control.  EDID management allows you to manage the input device and request specific video resolutions and/or audio codecs.  the following EDID options are available:
  • EDID Bypass
  • 1080P 2CH Audio
  • 1080P 8CH Audio
  • 4K60 4:2:0 2CH Audio
  • 4K60 4:2:0 8CH Audio
  • 4K60 4:4:4 HDR 2CH Audio
  • 4K60 4:4:4 HDR 8CH Audio
  • USER EDID – EDID Copy
The EDID Copy Function allows you to copy and save from any display or projector you want to.


On Board Troubleshooting:  This unit allows you to generate a 1080P or 4K test pattern to identify external problems (source, repeater, displays, etc...).  You can now be sure that your wiring is correct and get to the bottom of problems quickly should they arise, without having to worrying if the source or sink is working properly.  You can generate a test pattern from the Tx or the Rx so you can verify total system infrastructure integrity.

Cascade: AC-EX70-444 features HDMI signal equalization and amplification. This allows for a “daisy chain” of AC-EX70-444 extenders for extremely long distance transmission. With our unique bi-directional power, there is no need for a power source where the Rx and Tx meet up in a daisy chain, simply power the first Tx and the second Rx and power will be provided to the middle remotely.

IR & RS232 Management: IR & RS-232 are bidirectional and can control the sources from the sinks or vice versa. In addition you can use the I-PASS port to plug you Control System emitter ports directly into the IR (I-PASS) port on the transmitter (via mono 3.5mm cable) for clean and reliable IR pass through, our unique VPC (Voltage Protection Circuit) allows you to do this without wear and tear on the electronics inside.

Long Range Mode:
Enable Long-Range Mode for ultra long distances.  In this mode the extender can transmit up to1080P 8-BIT for 150M (500ft).  Note -In this mode the unit will not support 4K.






Clean Up you rack with AVProConnects Squid Rack & Power Supply

You can power 8 Rx's or Tx's with one power supply. Also mount your extenders in your rack for a clean installation.





Whats in the box?
  • AC-EX70-444-T (Transmitter)
  • AC-EX70-444-R (Receiver)
  • 48V Power Supply (One supplied)
  • 1 x IR Tx Unit
  • 1 x IR Rx Unit
  • 4x 3 Pin Terminal blocks for Audio and RS232 Ports
  • Mounting Ears
  • Operating Instructions
*Optional 3Pin to Stereo Audio Cables available for purchase
Video:
Video Resolutions Up to 4K/60fps 4:4:4
VESA Resolutions Up to DCI 4K (4096x2160)
HDR Formats HDR10, HDR10+, Dolby Vision, HLG
Color Bit Depth YUV (Component), RGB
(CSC: Rec. 601, Rec. 709, BT.2020, DCI-P3 D65)
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0 Supported
Deep Color Up to 16-bit (1080p) 10- and 12-bit (4K)
Down Scaling 4K (and HDR) down to 1080p
Audio:
Audio Formats Supported HDMI LPCM up to 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos (all formats), DTS-Digital Surround, DTS-ES Discrete, DTS-HD High Res Audio, DTS-HD Master Audio, DTS:X
Audio Formats Supported Extracted (2CH Port) PCM 2 Ch (No Downmix)
Distance:
HDBaseT (CAT) Distance (4K) 70 Meters / 230 Feet (Cat 6a)
HDBaseT (CAT) Distance (Full HD) 100 Meters / 330 Feet (Cat 6a)
HDMI Lead In/Out (4K60 4:4:4) Up to 50 Feet (using Bullet Train HDMI)
HDMI Lead In/Out (w/ AOC Cable) (4K60 4:4:4) Up to 130 Feet (using Bullet Train AOC)
Other:
Bandwidth 18 Gbps (Uses ICT above 10.2 Gbps signals)
HDCP HDCP 2.3 and Earlier
Ports:
HDMI  (TX & RX) Type A
HDBaseT RJ45 w/ PoH for HDBaseT Receivers
Audio (Extracted Analog) (TX & RX) 3 pin terminal block (Unbalanced) Each
IR TX (TX & RX) 3.5MM Mono (2-Conductor) Each
IR RX (TX & RX) 3.5mm Stereo (3-Conductor) Each
rs-232 (TX & RX) 3-Pin Terminal Block Each
power  (TX & RX) 2-Pin Terminal Block Each
Ethernet (TX & RX) 2x RJ45 Connections Each (10/100)
Environmental:
Operating Temperature 23 to 125°F (-5 to 51°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Humidity Range 5-90% RH (No Condensation)
Power:
Power Consumption (Total) 12 Watts Max
Power Supply - Matrix Input: AC 100-240V ~ 50/60Hz
Output: DC 48V 0.5A
Dimensions:
Dimensions (Unit Only Height/Depth/Width) mm: 157 x 103 x 12
inch: 6.18 x 4.04 x 0.47
Dimensions (Packaged Height/Depth/Width) mm: 203 x 165 x 91
inch: 8 x 6.5 x 3.6
Weight (Unit) 0.4 lbs/0.13 kg
Weight (Packaged) 2 lbs/0.90 kg
*Specifications subject to change without notice.  Mass & dimensions are approximate

4K Extender Applications

  • Point to point HDMI extension – flat panel in BR# 1 to STB in basement – makes for a very clean install.
  • As an add-on to any matrix switch up to 18G for long distance zone coverage.
  • To carry the control signals (IR/RS232) for third party control integration for turning components on and off and switching channels, etc.
  • For retrofit jobs where there is category cable already run and re-engineering is not an option.
  • Cascade for ultra long distances

Full Feature Set

  • HDMI 2.0(a/b)
  • 18Gbps Bandwidth Support (Using ICT)
  • Ultra Slim (.47 inch/12mm)
  • Up to 4K60 4:4:4 Support
  • Full HDR Support (HDR 10 & 12 Bit)
  • HDR, HDR10+ and HLG Support
  • 4K  --> 1080P Down-scaling for mixed systems
  • EDID Management and EDID emulate
  • 4K & HD Test Patterns built into Tx and Rx for troubleshooting
  • Ethernet Hub Capability
  • L/R Audio Extraction on Tx and Rx
  • HDCP 2.2 (and all earlier versions supported)
  • CEC Pass Through
  • 3D Support
  • 100M (330ft) on 1080P (Cat6a)
  • Up to 70m (230ft) on 4K (up to 4K60 4:4:4, HDR) (Cat6a)
  • Bi-directional 48v PoH (Power Over HDBaseT, only one Power Supply Needed)
  • I-Pass Feature for control system "pass-through"
  • 3-20v protection circuit built in for safe IR transport
  • Bi Directional RS232 Transport
  • LED Status, Link, Power indication lights
  • Use single UTP/STP LAN cable (CAT-5E/6A) with substitute HDMI cable to achieve long distance transmission.
  • Supports uncompressed PCM 2- Ch., LPCM 5.1 & 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio, Atmos
  • ESD protection circuitry (Inputs & Outputs) to 7KV
  • Can Cascade
More Information
SKU AC-EX70-444-KIT
Warranty 10 Years
